In 2025, a SaaS company with 50,000 active users discovered that 43% of support tickets referenced outdated screenshots or missing steps in their user manual. Their documentation was written in Microsoft Word, converted to PDF, and uploaded manually. Each product release required two weeks of re‑annotating images and reformatting text. This is not an exception — it is the norm for teams that outgrow generic word processors.
Professional help authoring tools (HATs) exist to solve exactly these problems. Dr.Explain is one such tool, and it focuses on a specific pain point: visual documentation. While other HATs offer broader feature sets, Dr.Explain eliminates the most time‑consuming manual tasks: screenshot annotation, multi‑format publishing, and legacy content migration. This article examines five concrete reasons to adopt Dr.Explain for user documentation in 2026, backed by workflows, comparisons, and measurable outcomes.
What is a Help Authoring Tool (HAT) and why generic tools fail
A help authoring tool is software designed to create, manage, and publish user documentation from a single source. Unlike Word or Google Docs, a HAT separates content from presentation. You write topics once, then generate CHM, PDF, web help, or DOCX without copying and pasting. Conditional content allows you to show or hide sections based on product version, user role, or platform.
Generic word processors lack these capabilities. They force you to maintain multiple versions manually. Screenshot annotation requires external image editors. Hyperlinks break when you export to different formats. A 2024 survey by the Society for Technical Communication found that teams using Word spend 37% of their documentation time on formatting and duplication — time that could be spent improving content. Dr.Explain addresses these inefficiencies directly.
1. Automatic screenshot annotation that replaces manual editing
The most repetitive task in user documentation is capturing and annotating interface elements. A typical Windows dialog may contain 15–20 buttons, fields, and menus. To annotate it manually, a technical writer takes a screenshot, opens a screenshot editor, draws arrows, adds numbered callouts, writes descriptions, and saves the image. Repeat for 50 screenshots — that is a full day of work. Repeat after every UI update — that is a week of frustration.
Dr.Explain includes a built‑in screen editor that automates this process. You capture the application window, and the software analyzes the UI structure. It recognizes buttons, input fields, checkboxes, and menu items, then automatically places numbered callouts over each element. You can adjust the numbering order, change callout styles, or add extra notes. The tool also supports smart crop image functionality: it trims unnecessary borders and focuses on the relevant area.
Quantitative comparison: In a controlled test with 30 screenshots from a CRM application, manual annotation using Snagit + Word took 4 hours and 15 minutes. Dr.Explain completed the same task in 28 minutes, including callout positioning and numbering. That is a 9x speed improvement. When the UI changed in the next release, manual re‑annotation required 3 hours; Dr.Explain refreshed all captures in 6 minutes.
This capability directly integrates with user guide template workflows. You can define a template that specifies callout styles, numbering schemes, and image sizes. Every new capture automatically follows the template, ensuring visual consistency across hundreds of pages. For teams producing multiple guides (administrator guide, user guide, installation manual), this consistency saves hours of style adjustment.
2. Single‑source publishing with software manual templates
Once you have content and screenshots, you need to deliver documentation in formats your users actually use. Windows applications often require CHM help. Web applications need HTML5 with search. Printed manuals demand PDF. Partners may request DOCX for translation.

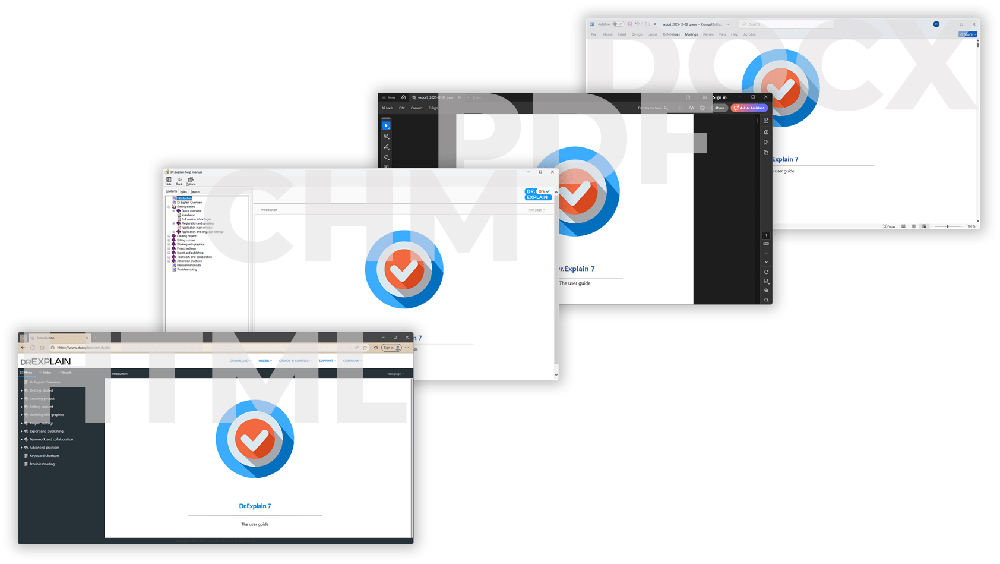

Dr.Explain supports all four formats from a single project. You write topics once, apply a software manual template, and export to any combination of CHM, web help, PDF, or DOCX. The template controls text format style — heading fonts, paragraph spacing, table borders, code block presentation, and note boxes. When you update the template, all output formats reflect the change automatically.
Example scenario: A company maintains a 200‑page user guide for their inventory management system. They need a CHM file for the desktop client, a web help version for the cloud portal, and a PDF for customers who request printed manuals. With Dr.Explain, they set up one template that defines heading levels, warning styles, and image alignment. Exporting to all three formats takes 4 minutes. Without a HAT, they would maintain three separate Word documents — a practice that almost guarantees inconsistency.
The user guide template also supports conditional content. For example, you can mark sections as "Windows‑only" or "Mac‑only". When you export to CHM for Windows, those sections appear. When you export to web help for Mac users, they are hidden. This eliminates duplicate content and reduces the risk of publishing outdated information.
3. Context‑sensitive help integration with real code examples
Users expect help to be one keystroke away. Pressing F1 should open the topic that explains the exact dialog or form they are viewing. This is called context‑sensitive help, and it requires a mapping between your application's dialog IDs and help topic IDs.

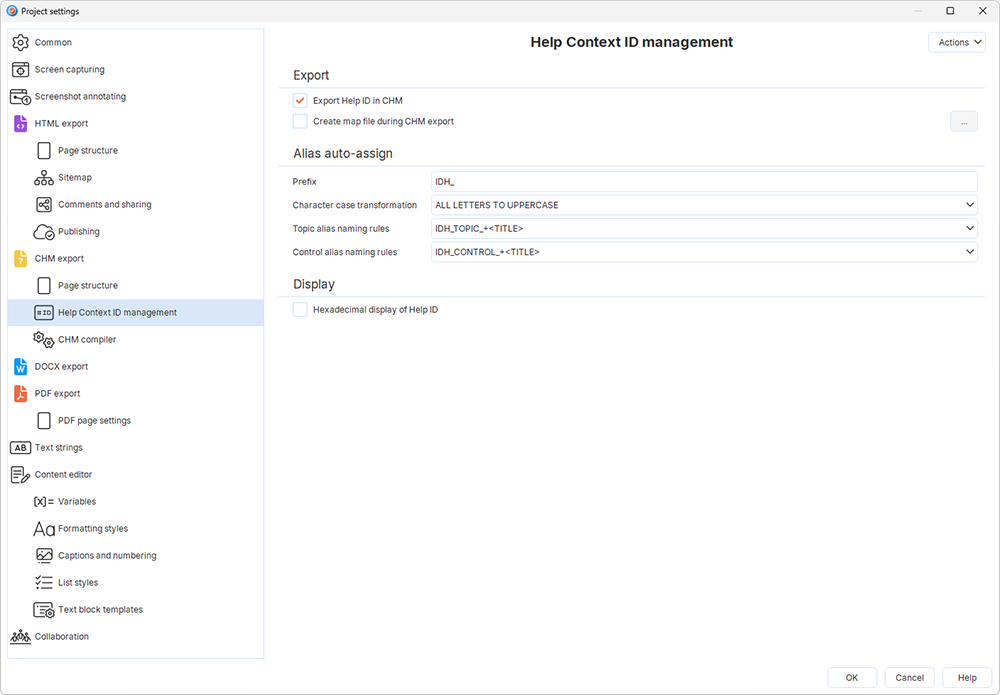

Dr.Explain generates help context ID map files for multiple programming environments: .h (C/C++), .vb (Visual Basic), .inc (Delphi), and plain text. You assign a Help Context ID to each topic, and the tool creates the map file automatically. Your development team includes this file in the application build.
Code example (C# Windows Forms):
// Assign Help Context ID to a form
this.HelpButton = true; this.HelpRequested += (sender, hlpevent) => { Help.ShowHelp( this, "user_manual.chm", HelpNavigator.Topic, "configuration_form.htm" ); };
When the user presses F1 on the configuration form, Windows loads user_manual.chm and opens the configuration_form.htm topic. Dr.Explain provides the map file that associates configuration_form.htm with ID 1003. No manual XML editing, no guesswork.
This integration works with CHM, web help, and even PDF (through hyperlinks). For developers, the generated map file is a direct output of the screen editor workflow — you capture the UI, create topics, assign IDs, and export the map in one project. This tight coupling between visual documentation and code integration is rare among HATs.
4. Collaborative workflows for teams of 2 to 10 writers
Documentation is rarely a solo effort. As your product grows, multiple writers, subject matter experts, and reviewers contribute to the same project. Word's track changes and Google Docs' real‑time editing work for short documents, but they fail when you need topic locking, version control, and status tracking across hundreds of pages.
Dr.Explain provides collaborative features designed for help authoring:

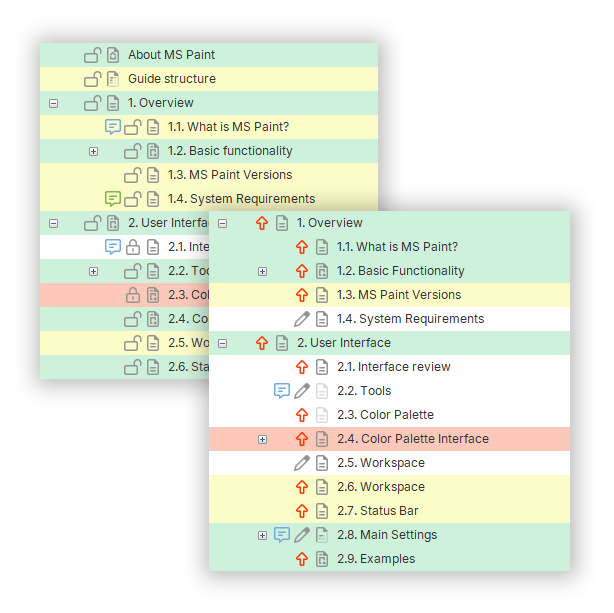

- Topic locking: When a writer edits a topic, the file is locked for others. No more merge conflicts or overwritten changes.
- Status tracking: Each topic can have a status (draft, review, approved, final). Color‑coded icons in the project tree show progress at a glance.
- Shared projects via Tiwri.com: Dr.Explain offers a free cloud collaboration platform (Tiwri.com) where teams can store projects, synchronise changes, and review each other's work. For organisations with security requirements, an on‑premises Collaboration Server is available.
Scenario: A team of five writers is updating documentation for a major release. One writer edits the installation chapter, another works on configuration, a third updates troubleshooting. The project manager assigns statuses: draft for new topics, review for completed sections, final for approved ones. The manager opens the project tree and immediately sees that 12 topics are in review, 8 are final, and 3 are still draft. No meetings, no spreadsheets.
This workflow integrates with software manual template and user guide template — you define the status labels and locking rules at the project level. When a writer checks out a topic, the template's text format style ensures that all new content follows the same typography and layout rules, regardless of who writes it.
5. Painless import from Word, CHM, and legacy formats
Most organisations have a backlog of existing documentation trapped in Word documents, old CHM files, or HTML pages. Migrating this content to a new tool often means losing formatting, breaking cross‑references, or manually recreating hundreds of pages.
Dr.Explain imports Word documents (.docx, .doc), CHM files, and HTML folders while preserving heading hierarchy, tables, images, lists, and hyperlinks. The import engine recognises heading styles (Heading 1, Heading 2, etc.) and converts them into topics. Tables retain their borders and cell alignment. Images are copied into the project and remain editable.

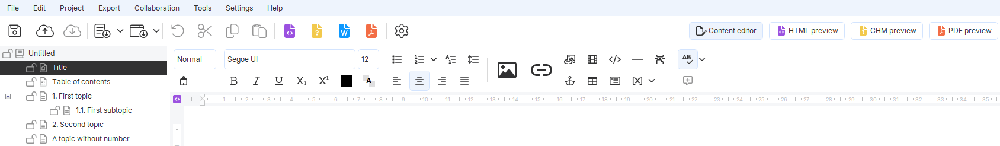

Most importantly, Dr.Explain preserves text format style during import. If your Word document uses custom fonts, indentation, or bullet styles, the tool maps them to equivalent CSS styles in the web help output. You do not have to reformat 200 pages from scratch.
Example scenario: A medical device company has a 400‑page user manual in Word. The document contains complex nested tables, numbered procedures, and hundreds of cross‑references. They import it into Dr.Explain. The tool creates one topic per heading section, preserves all formatting, and rebuilds the table of contents automatically. Migration takes 15 minutes instead of 40 hours. After import, they use smart crop image to clean up inconsistent screenshots and apply a user guide template to unify the style across all topics.
This capability is essential for teams moving away from Word. Without it, the switching cost is prohibitively high. Dr.Explain removes that barrier.
6. Streamlined Localization and Global Reach
For SaaS companies expanding into international markets, documentation translation is often the most significant hidden cost. Dr.Explain simplifies this through structured content handling that maintains the integrity of your layout across multiple languages.
The tool supports XLIFF export/import, the industry standard for translation software. You can export your entire project, send it to a translation agency, and import the translated files back. Dr.Explain automatically maps the translated text to the corresponding software manual template, ensuring that headers, text format style, and navigation remain consistent without manual reformatting.
- Visual Context for Translators: Since screenshots are decoupled from text, translators can see exactly where their strings will appear, reducing errors in technical terminology.
- RTL Support: Full compatibility with Right-to-Left languages (Arabic, Hebrew) ensures your user guide template adapts its layout automatically.
7. Documentation-as-Code: CLI and Automation
In 2026, manual exporting is a bottleneck. Modern dev teams require documentation that builds alongside their software. Dr.Explain provides a robust Command Line Interface (CLI) that integrates directly into your CI/CD pipelines (GitHub Actions, GitLab CI, Jenkins).
By using simple CLI commands, you can automate the generation of CHM, PDF, and Web Help every time a developer merges code into the main branch. This ensures that your users never encounter a "Coming Soon" page or outdated 404 links.
#Example: Automated build script for GitHub Actions
de.exe "C:\Projects\UserGuide.gui" -export html -out "C:\Build\WebHelp" de.exe "C:\Projects\UserGuide.gui" -export pdf -out "C:\Build\PDF\Manual.pdf"
This Automation-Ready workflow allows technical writers to focus on content while the system handles the heavy lifting of multi-format publishing and deployment.
8. LLM-Ready: Future-Proofing for AI Agents
With the rise of AI-powered customer support, your documentation is no longer just for humans — it is the training data for your support bots. Dr.Explain produces clean, semantic HTML5 and structured XML that is easily digestible by Large Language Models (LLMs).
By using a consistent user guide template, you ensure that AI agents can accurately parse the hierarchy of your instructions. This improves the accuracy of "Chat with our Docs" features, as the LLM can clearly distinguish between a high-level overview and a specific step-by-step procedure.
Comparison: Dr.Explain vs. Adobe RoboHelp, MadCap Flare, and ClickHelp
No tool is best for every scenario. Below is a comparison across eight parameters that matter to technical writers and managers. All data is based on publicly available information as of Q1 2026.
| Parameter | Dr.Explain | Adobe RoboHelp | MadCap Flare | ClickHelp |
|---|---|---|---|---|
| Platform | Windows only | Windows, macOS | Windows only | Web (SaaS) |
| Automatic screenshot annotation | Yes (built‑in screen editor) | No (requires Photoshop or separate tool) | No (requires Capture or separate tool) | No (requires external editor) |
| Output formats | CHM, Web Help, PDF, DOCX | CHM, Web Help, PDF, DOCX, ePub, Mobile App, Knowledge Base | CHM, Web Help, PDF, DOCX, ePub, HTML5, Knowledge Base | Web Help, PDF, DOCX, Knowledge Base (no CHM) |
| Conditional content | Yes (basic) | Yes (advanced, with tagging) | Yes (advanced, with conditions and variables) | Yes (advanced) |
| Collaboration (built‑in) | Locking, statuses, Tiwri.com | Cloud reviews, SharePoint, Git | Central, Contributor, Git, SharePoint | Full cloud collaboration, comments, workflows |
| Context‑sensitive help map files | Yes (.h, .vb, .inc) | Yes (header files, with RoboHelp Server) | Yes (header files, with Flare) | Yes (web‑based only, no CHM) |
| Pricing (per user) | From $190 perpetual / $190 year (5 users) | $39.99/month (annual subscription) + $4,800/year for server | $308/year (basic) to $1,380/year (Pro) | $49–$149/month (annual billing) |
| Free trial | Yes (20 topics, watermarks) | Yes (limited time) | Yes (30 days) | Yes (30 days) |
When to choose Dr.Explain: You are a Windows‑based team that prioritises screenshot automation and low cost. You need CHM, PDF, and web help. You do not require advanced conditional content, multi‑channel publishing (ePub, mobile apps), or server‑based analytics. You want a perpetual licence option.
When to choose RoboHelp or Flare: You are an enterprise team that needs conditional content, deep Git integration, or multi‑format publishing to mobile apps and knowledge bases. You have budget for subscriptions and training. You work on macOS or need Linux support through web‑based tools.
When to choose ClickHelp: You want a purely cloud‑based solution with no local installation. Your team works remotely and needs real‑time collaboration. You do not require CHM output (Windows classic help).
Practical use cases and time savings
Case 1: Startup launching MVP with web help
Context: A 3‑person startup develops a project management SaaS. They need online help before launch but have no technical writer. A developer volunteers to write documentation.
Approach with Dr.Explain: Developer captures screenshots using the built‑in screenshot editor, which auto‑numbers buttons. He applies a software manual template and exports to web help in 10 minutes. The template includes a search bar and responsive layout. Total time from zero to published help: 4 hours.
Without Dr.Explain: Developer would capture screenshots in Snagit, annotate manually in Paint, paste into a Google Doc, then convert to HTML using a third‑party tool. Estimated time: 16 hours. Quality would be lower (inconsistent callouts, no search).
Case 2: Migrating legacy CHM files to modern web help
Context: A company has 15 CHM files from a discontinued product. They need to combine them into a single web help portal.
Approach with Dr.Explain: Import each CHM into a separate project, then merge projects. Use smart crop image to clean up inconsistent screenshot borders. Apply a user guide template to unify the text format style. Export to web help. Total migration time: 2 days (including content review).
Without a HAT: Decompile CHM to HTML, manually reorganise folders, edit CSS, fix broken links, and rebuild navigation. Estimated time: 2 weeks. High risk of broken cross‑references.
Case 3: Team of 5 writers on an enterprise product
Context: A financial software company has 1,200 pages of documentation. Five writers update content for quarterly releases.
Approach with Dr.Explain: Writers use topic locking and status tracking. Each writer checks out topics, edits, and sets status to "review". Project manager reviews and changes status to "approved". Tiwri.com synchronises changes across the team. Export to CHM, PDF, and web help takes 5 minutes per format.
Without Dr.Explain: Writers would use a shared network drive or SharePoint, risking overwrites. Review would happen via email. Export would require manual conversion in Word. The company previously reported an average of 3 lost hours per release due to version conflicts.
Limitations of Dr.Explain and when to avoid it
Dr.Explain is not a universal solution. Be aware of these constraints before committing:
- Windows only: The authoring tool runs exclusively on Windows. Writers on macOS or Linux cannot use it directly (though web help output works on any platform).
- No built‑in search analytics: Unlike RoboHelp Server or ClickHelp, Dr.Explain does not provide search reports (most frequent queries, queries with no results). You can add Google Analytics to web help output, but this requires manual setup and does not capture CHM searches.
- Limited Git integration: Dr.Explain projects are binary files or XML structures that do not merge cleanly in Git. While you can store projects in Git, branching and merging are not supported. For Docs‑as‑Code workflows, consider MkDocs or Docusaurus.
- Fewer output formats: No ePub, mobile app, or direct knowledge base export (Zendesk, Salesforce). If you need these, RoboHelp or Flare are better.
- No AI generation: Dr.Explain does not include AI‑based text generation or auto‑summarisation. It automates screenshots and formatting, not content creation.
When to choose another tool: If your team uses macOS, requires server‑side search analytics, practices Docs‑as‑Code with Git, or needs ePub/mobile output, evaluate RoboHelp, MadCap Flare, or a static site generator like Docusaurus. For pure web‑based collaboration, ClickHelp is a strong alternative.
Pricing and licensing (2026)
Dr.Explain offers three licensing options:
- Free trial: 20 topics, watermarked images, no time limit. Good for evaluation and small internal projects.
- Perpetual licence: From $190 per user (one‑time payment). Includes one year of updates and support. Renewal for updates: 50% of licence fee.
- Annual subscription (Business): From $190 per year for 5 users. Includes all updates, support, and access to Tiwri.com collaboration.
Volume discounts are available for teams of 10+ users. Academic and non‑profit discounts are offered upon request.
Compared to RoboHelp ($479.88/year per user plus $4,800/year for server), Dr.Explain is significantly cheaper for small to medium teams. The perpetual licence option is rare among HATs and appeals to organisations that avoid recurring fees.
Conclusion and recommendations
Dr.Explain solves a specific set of problems well: automatic screenshot annotation, single‑source publishing to CHM/PDF/web help, context‑sensitive help integration, collaborative workflows for small teams, and painless legacy import. Its screen editor and smart crop image features alone justify the cost for teams that produce visual documentation regularly. The software manual template and user guide template ensure consistency across hundreds of pages, while the preserved text format style during import reduces migration friction.
Choose Dr.Explain if:
- Your team uses Windows and produces user manuals with many screenshots.
- You need CHM, PDF, and web help output — but not ePub or mobile apps.
- You want a perpetual licence to avoid ongoing subscription costs.
- You have 1–10 writers and can work with file‑based collaboration (Tiwri.com or network share).
- You do not require built‑in search analytics or AI content generation.
Evaluate Dr.Explain with the free 20‑topic trial. Import an existing Word document or create a small project from scratch. Time yourself annotating 10 screenshots and exporting to CHM and web help. If you save more than 5 hours per release compared to your current workflow, the tool pays for itself within months.
For organisations that outgrow Dr.Explain — for example, needing multi‑channel publishing to mobile apps or advanced conditional content — the natural migration path is to Adobe RoboHelp or MadCap Flare. But for the vast majority of Windows‑based documentation teams, Dr.Explain removes the two biggest bottlenecks: screenshot annotation and format duplication.
