Inserting image from file

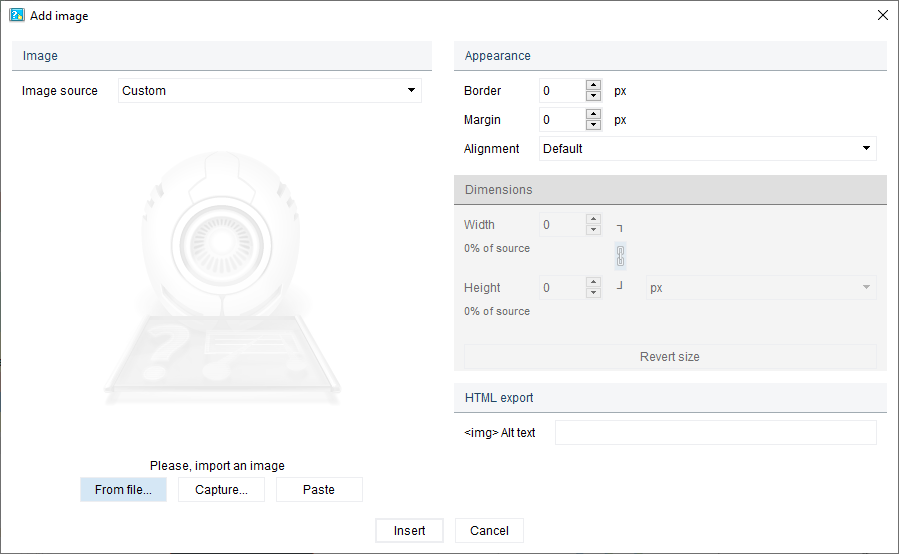

Once you click the button the following dialog appears:

Inserting image from file
Use this dialog to browse for an image file or capture a new screenshot and define the image properties. To change the image properties, right-click the necessary image and select the Image properties menu option from the pop-up menu or double-click the required image to display this dialog.

1

Image source

1. Image source
Use this field to specify the type of the image: annotated screenshot, control image, control bullet, or a custom image. When you add a new image from a file, then Custom will be selected by default.
2

Appearance

2. Appearance
In this section, you can specify the image border width and its margin.
3

Dimensions

3. Dimensions
Use this section to manage the image size, alignment, and proportions.

Use the Revert size button to reset image size to original or discard your changes.

4

Image preview

4. Image preview
The preview shows a pre-rendered snapshot of the image to be inserted.
5

Image management buttons

5. Image management buttons
Click the From file... button if you want to add an image from a file saved on your computer.
Click the Capture... button if you want to add a screenshot.
6

Insert button

6. Insert buttonClick the Insert button to add an image.
7

Cancel button

7. Cancel buttonClick the Cancel button to discard your changes and close this dialog.
